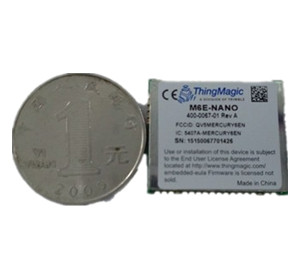

Dimensions

22 mm L x 26 mm W x 3.0 mm H (0.866 in L x 1.024 in W x 0.118 in H)

Tag / Transponder Protocols

RFID Protocol Support

EPCglobal Gen 2 (ISO 18000-6C)

RF Interface

Antennas

Single 50 Ω connection (board-edge)

RF Power Output

Separate read and write levels, command- adjustable from 0 dBm to +27 dBm

in 0.01 dB steps

Regulatory

Pre-configured for the following regions:

FCC (NA, SA) 917.4 – 927.2 MHz

ETSI (EU) 865.6 – 867.6 MHz

TRAI (India) 865 – 867 MHz

KCC (Korea) 917– 923.5 MHz

MIC (Japan) 916.8 – 923.4 MHz

ACMA (Australia) 920 – 926 MHz

SRRC-MII (P.R.China) 920.1– 924.9 MHz

‘Open’ (Customizable channel plan; 859 – 873 MHz and 915 – 930 MHz)

Data/Control Interface

Physical

41 board-edge connections providing access to RF, DC power, communication, and GPIO signals

Control/Data Interfaces

UART; 3.3V logic levels; 9.6 to 921.6 kbps

Shutdown control

GPIO Sensors and Indicators

Four 3.3V bidirectional ports configurable as input (sensor) ports or output (indicator) ports

API support

C#/.NET, Java, and Embedded “C” APIs

Power

Power

Power

DC Power Required

DC Voltage:

3.3 to 5.5 V for +25 dBm out

3.7 to 5.5 V for +27 dBm out

DC power consumption when reading:

3.2 W @ 5 VDC for +27 dBm out

2.9 W @ 5 VDC for +25 dBm out

1.5 W @ 5 VDC for 0 dBm out

Idle Power Consumption

0.84 W in ready mode

0.015 W in sleep mode

0.00025 W in shutdown mode

Power

Certification

FCC 47 CFR Ch. 1 Part 15

Industrie Canada RSS-21 0

ETSI EN 302 208 v1.4.1

Operating Temp.

-20C to +60C (case temperature)

Storage Temp.

-40C to +85C

Shock and Vibration

Survives 1 meter drop during handling

Performance

Boot time

Less than 30 msec after initial calibration boot

Performance

Up to 200 tags/sec reading 96-bit EPC
