EL6e 超高频(UHF)RFID RAIN智能模块(ThingMagic)

产品分类： RFID 模组 (RFID Module)

ThingMagic EL6e 超高频(UHF) RAIN RFID智能模块基于业界成熟的ThingMagic Nano模块，增加了界面和可操作性功能，使工程师能够将设计工作量降至最低，并在任何需要中短程读取距离的应用中快速嵌入超高频RFID模块。EL6e UHFRFID模块支持自主工作流程，允许快速创建解决方案，无需RFID专业知识，也无需使用SDK和集成工具，它是市场上首.批支持应用程序和RAIN RFID阅读器之间新的开发人员友好界面的产品之一，即RAIN通信接口（RCI）。

订购热线：400-0581-580

产品详情产品参数相关下载

EL6e 超高频(UHF)RFID RAIN智能模块(ThingMagic)

1.产品详情

ThingMagic EL6e 超高频(UHF) RAIN RFID智能模块基于业界成熟的ThingMagic Nano模块，增加了界面和可操作性功能，使工程师能够将设计工作量降至最.低，并在任何需要中短程读取距离的应用中快速嵌入超高频RFID模块。EL6e UHF RFID模块支持自主工作流程，允许快速创建解决方案，无需RFID专.业知识，也无需使用SDK和集成工具，它是市场上首.批支持应用程序和RAIN RFID阅读器之间新的开发人员友好界面的产品之一，即RAIN通信接口（RCI）。

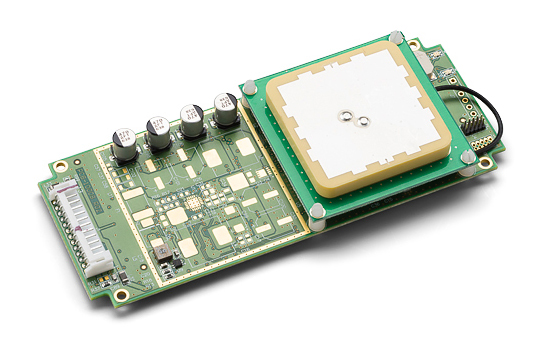

EL6e 超高频(UHF)RFID RAIN智能模块(ThingMagic)_超高频RFID模块_UHF RFID模块

2.特点和优点

基于强.大的ThingMagic Nano模块

具有基于ARM的cortex-M4架构的高度集成UHF RFID阅读器

带车载天线的可扩展范围

提供多个接口

最新的RAIN通信接口（RCI）支持RAIN RFID技术标准

预装自治工作流，简化并加快安装时间

支持EPC Gen2V2和ISO 18000-63标准

3.产品特定应用

适用于医疗保健和制药行业的医疗

进入点，如停车场入口门、滑雪电梯门

适用于套件组装和退货处理站

Based on the industry-proven ThingMagic Nano module, the ThingMagic EL6e UHF RAIN RFID Smart Module adds interface and operability features that allow engineers to minimize design efforts and quickly embed an RFID module in any application that requires mid- or short-range read distance. The EL6e supports autonomous workflows permitting rapid creation of solutions without RFID expertise nor the use of SDKs and integration tools, and it’s among the first products in the market to support a new developer-friendly interface between applications and RAIN RFID readers, the RAIN Communication Interface (RCI).

2.Features and Benefits

Built on the powerful ThingMagic Nano module

Highly integrated UHF RFID reader with ARM based cortex-M4 architecture

Expandable range with on-board mounted antenna

Multiple interfaces available

Latest RAIN Communication Interface (RCI) supports RAIN RFID technology standard

Pre-loaded autonomous workflows to simplify and accelerate setup time

Supports EPC Gen2V2 and ISO 18000-63 standard

3.Product Specific Applications

Ideal for medical equipment intended for healthcare and pharmaceutical industries

Access points such as parking garage access gates, ski lift gates

Suitable for kit assembly and returns processing stations

ThingMagic与JADAK（杰达克）的RFID 技术结合，将产生更为强.大助力，推动RFID行业的发展。

深圳市铨顺宏科技有限公司作为美国JADAK旗下ThingMagic的中国区总代理商，为您提供ThingMagic的超高频RFID模块、超高频RFID读写器以及超高频RFID天线和标签。ThingMagic作为全.球的RFID设备制造商，可以在保证稳定性和准.确性的前提下，其核心产品具备750张标签每秒的读取速度，强.大的多标签防碰撞算法，高速的信息读取与处理能力。

深圳铨顺宏以专.业的技术支持，用心服务于每位客户和用户，帮助客户将ThingMagic产品广泛应用于RFID服装零售智慧门店、RFID医疗智能化管理，RFID档案票据管理、RFID公检法物证管理，RFID银行款箱及票据管理、RFID电力电网和巡检管理、RFID航空行李管理、RFID物流自动化分拣，RFID精准农渔业智能化等多个领域。

还想了解更多RFID产品详情？请点击右上角的在线客服(400 0581 580)咨询，深圳市铨顺宏将竭诚为您服务！

EL6e RFID UHF超高频读写模块/模组产品参数：

Physical
Dimeonsnsi	50 mm(W)x122.5mm(L)x10.5mm(H)or15.5mm with antenna
Mounting Holes	4 mounting holes with 2.5 mm ID
RF Interface
Antenna(Optional)	Board-mounted antenna EU or NA frequency range, RHCP, 3 dBi nominal gain
Antenna Connector	U.FL connector for an externally mounted antenna
RF Power Output	Read and write levels adjustable from 0 to+27 dBm in 0.01 dB steps
Region Selections for High Band Freq. Range(915-928 MHz)	FCC(NA, SA), Argentina, Australia, Bangladesh, China, Indonesia, Japan, Korea, Macao, Malaysia, New Zealand, Philippines, Singapore, Taiwan, Thailand
Region Selections for Low Band Freq. Range (865-868 MHz)	ETSI (EU), Hong Kong, India, Russia, Vietnam
Tag / Transponder Protocols
RFID Protocol Support	EPC global Gen 2V2(ISO 18000-63)
Data/Control Interface
Control/Data Interfaces	USB or RS-232; I2C, SPI, or RS485 available on reques
GPIO Sensors and Indicatos	4 3.3V GPIO ports: 1 input (sensor), 1 service and 2 output (indicator) lines
User Indicators	2 bi-color LEDs and audio signal
Power
Power Consumption (Full RF Output Power)	USB Powered: 5VDC +/- 10% at 3.5 W; External Power: 4.5-10 VDC at 4.9 W; 10-26 VDC at 4.4 W
Power Consumption (Not Transmitting)	USB Powered: 5VDC +/- 10% at 1.0 W; External Power: 4.5-10 VDC at 2.4 W; 10-26 VDC at 1.9 W
Regulatory Certifications & Environment
Certifications	M6E-NANO modular certifications incl. USA (FCC 47 Part 15), Canada (RSS-210), EU (ETSI EN 302 208 v3.1.1, RED 2014/53/EU) & FCC Class A for incidental emissions (EMI)
Safety	IEC/UL 60950-1
Environmental	RoHS, REACH
Temperature	Operating 0°C to +50°C; Storage -40°C to +70°C
Vibration (Without Antenna)	Sinusoidal vibration 1.0” peak to peak displacement 5-14 Hz; 10g acceleration 14-500 Hz, 1.0g from 500-2000 Hz; 30 min linear freq. sweep on 3 axes.
Performance
Max Read Rate	Up to 65 tags/second
Max Tag Read Distance	Up to 2m (6 ft) reliant on power availability, antenna choice and tag size
Ordering Information
PLT-RFID-EL6E-UHF-0-USB	EL6e Embedded Module, USB, No Antenna
PLT-RFID-EL6E-UHF-0-232	EL6e Embedded Module, RS232, No Antenna
PLT-RFID-EL6E-USB-DEVKIT	Development Kit (incl. multiregional USB module, USB cable and Y adapter, EU and NA antennas, sample tags and quick start guide)
PLT-RFID-ANT-EL6E-EU	Antenna Kit, EU region
