FU-BC-01布草智能分拣台

产品分类: RFID 读写器 (RFID Reader)
    FU-BC-01布草智能分拣台专为医院、酒店以及服装行业的布草分拣、结算工作设计,适用于医院、酒店、服装门店,是一台可移动的、嵌入超高频RFID技术,整合了高集成计算机、无线通信、移动管理技术,适合多种工作环境,针对RFID布草标签信号进行扫描、统计,可实现集成数据库实时在线操作的智能化设备,通过对投入平台内布草标签的扫描,来采集传送信息,能帮助工作人员高效完成布草的分拣和统计盘点等工作的专用智能设备,实现布草的精确化、实时化和高效率管理。
    订购热线:400-0581-580
      一、产品简介:

          1、FU-BC-01布草智能分拣台,是一款应用RFID技术,实现布草快速盘点、分拣的智能工作平台。

          2、FU-BC-01布草智能分拣台专为医院、酒店以及服装行业的布草分拣、结算工作设计,适用于医院、酒店、服装门店,是一台可移动的、嵌入超高频RFID技术,整合了高集成计算机、无线通信、移动管理技术,适合多种工作环境,针对RFID布草标签信号进行扫描、统计,可实现集成数据库实时在线操作的智能化设备,通过对投入平台内布草标签的扫描,来采集传送信息,能帮助工作人员高效完成布草的分拣和统计盘点等工作的专用智能设备,实现布草的精确化、实时化和高效率管理。

          3、FU-BC-01 支持FCC902-928Mhz或其他指定规范(ETSI(EU)865.6-867.6MHz或MIC(Korea)910-914MHz或SRRC-MII(P.R.China)920-925MHz)。

          4、FU-BC-01 充分发挥了 Thingmagic RFID 模组算法优势,其优异的标签芯片兼容性,支持 Alien H3 、Impinj M 系列、NXP G2x* & G2i*系列 、ID Cool Log标签芯片,标签兼容性行业唯一性。

          5、FU-BC-01 全面支持 ThingMagic Mercury API 嵌入式操作系统,提供.NET 和Java 的 SDK ,可以轻松的自定义接口,从而对阅读器进行所需要的控制。


          1、FU-BC-01 linen intelligent sorting table is an intelligent working platform which uses RFID technology to realize quick inventory and sorting of linen.

          2、FU-BC-01 linen intelligent sorting table is specially designed for sorting and settlement of linen in hospitals, hotels and clothing industries. It is a movable intelligent device embedded with UHF RFID technology, which integrates highly integrated computer, wireless communication and mobile management technology, and is suitable for various working environments. It can scan and count the RFID linen label signals and realize real-time online operation of the integrated database. By scanning the linen labels put into the platform, the information can be collected and transmitted, which is a special intelligent device that can help the staff to efficiently complete the sorting and statistical inventory of linen, and realize the accurate, real-time and efficient management of linen.

          3、FU-BC-01 supports FCC902-928Mhz or other specified specifications (ETSI(EU)865.6-867.6MHz or MIC(Korea)910-914MHz or SRRC-MII(P.R.China)920-925MHz).

          4、FU-BC-01 gives full play to the advantages of Thingmagic RFID module algorithm, and its excellent tag chip compatibility supports Alien H3, Impinj M series, NXP G2x* & G2i* series, and ID Cool Log tag chips, which is unique in the tag compatibility industry.

          5、FU-BC-01 fully supports the embedded operating system of ThingMagic Mercury API, provides SDK of. NET and Java, and can easily customize the interface so as to control the reader as needed.


      重要事项:

          在未得到该产品制造商授权人员指导下,请勿随意拆装读写器设备,否则可能会发生触电、损坏设备零部件的事故。请不要重压或撞击读写器设备,以免损坏零部件或使设备运转不正常。请确定您所使用的电源接地良好,否则聚积的静电会损伤设备和核心 RFID 模组。

          Do not disassemble the reader without the guidance of the authorized personnel of the product manufacturer, otherwise it may cause electric shock and damage to equipment parts. Please do not press or impact the reader/writer equipment, so as not to damage parts or make the equipment run abnormally. Please make sure that the power supply you are using is well grounded, otherwise the accumulated static electricity will damage the equipment and the core RFID module.


      警告:

          在生活环境中,该产品可能会造成无线电干扰。在这种情况下,需要用户自行对其干扰采取解决措施。长时间不使用时,请关闭设备电源。

          In the living environment, this product may cause radio interference. In this case, users need to take measures to solve their own interference. Please turn off the power of the equipment when it is not used for a long time.


      二、产品特点

          1、具备布草分拣、点数、盘点等功能;

          2、采用简洁外形设计;

          3、采用物理金属隔离,防止误读周围环境的标签;

          4、采用模块化设计,设备主要功能模块便于安装和更换;

          5、采用安卓工业级触摸一体机,操作简便快捷,响应迅速,界面友好,实时动态联网,

          6、完成快速信息交互,具有良好的扩充性能和极强的安全性;

          7、系统具有足够的抗攻击能力和快速回复能力;

          8、具有可扩展性和可维护性,系统设备通过简单的硬件转换可以升级



          1, with linen sorting, counting, inventory and other functions;

          2, adopt simple shape design;

          3. Physical metal isolation is adopted to prevent misreading the labels of the surrounding environment;

          4. Modular design is adopted, and the main functional modules of the equipment are easy to install and replace;

          5. Android industrial-grade touch all-in-one machine is adopted, with simple and quick operation, quick response, friendly interface and real-time dynamic networking.

          6. Complete rapid information exchange, with good expansion performance and strong security;

          7. The system has sufficient anti-attack capability and quick recovery capability; 8. It is scalable and maintainable, and the system equipment can be upgraded through simple hardware conversion.


      三、产品参数:

      参数

      规格

      型号

      FU-BC-01

      工作频率

      860~960MHz,客户可选

      标签协议

      EPC Gen2( ISO 18000-6C)

      外观尺寸

      890(L)mm×660(W)×960+400(H)mm(长×宽×高)

      通信接口

      WIFI  ;BlueTeeth(蓝牙);RJ45;4G

      主机

      安卓工控平板电脑

      屏幕尺寸

      13.3 寸

      CPU

      RK3288/四核 主频 1.8Ghz ARM Cortex-A17 架构

      分辨率

      1920x1080 比 例 16:9

      运行内存

      2GB /4 片 512MB DDR3

      存储

      8GB EMMC

      读取性能

      ≥20 件布草的准确识别

      误读范围

      ≤1 米(以读取区域为中心)

      外壳材料

      钣金

      外观

      机身:米白

      工作温度

      -10℃~50℃

      储存温度

      -20℃~60℃

      相对湿度

      5%~80%

      符合标准

      ISO18000-6C

      工作电压

      AC220V±10%

      整机功率

      40W

      功能接口

      三相电源插头

      USB 2.0/ 4 个(充电)


      四、其他说明

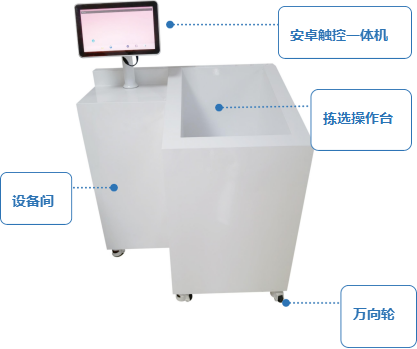

          设备外观结构:

      RFID布草分拣台

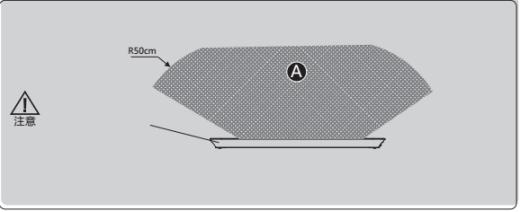

      识别区域定义:

          识别区域为RFID 读取覆盖区,其基本范围参见下图。请在使用时,将标签放置于此区域读取。

      rfid布草分拣台

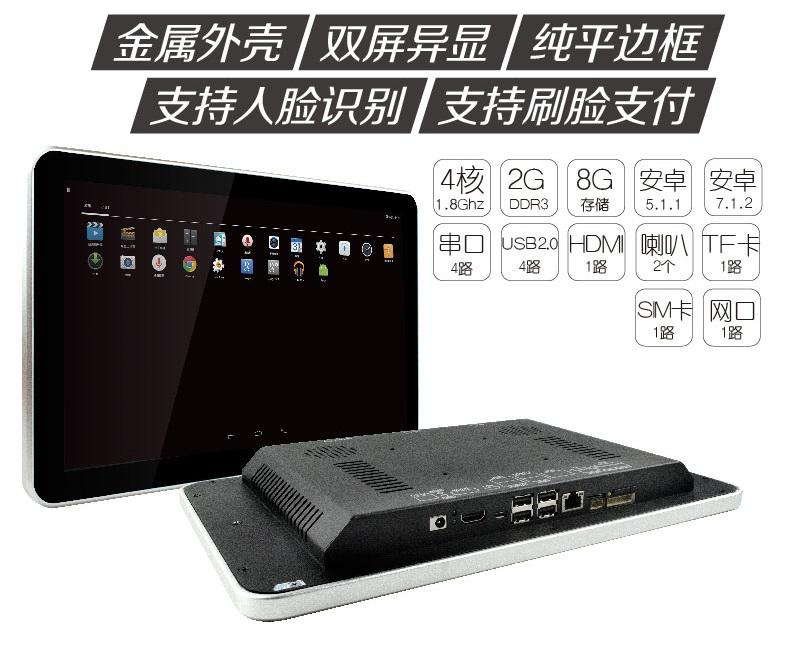

      安卓触控一体机:

          配备操作灵活的电容触摸屏,采用全新红外触摸技术,触摸定位精度高,操作实时响应,屏幕可以作为书写的界面,通过手指或书写笔即可实现文字书写、绘制图形等操作。高度稳定可靠,抗干扰性强,高透光性,使用寿命高,不怕刮伤,触摸特性好,无需力度即可触摸。

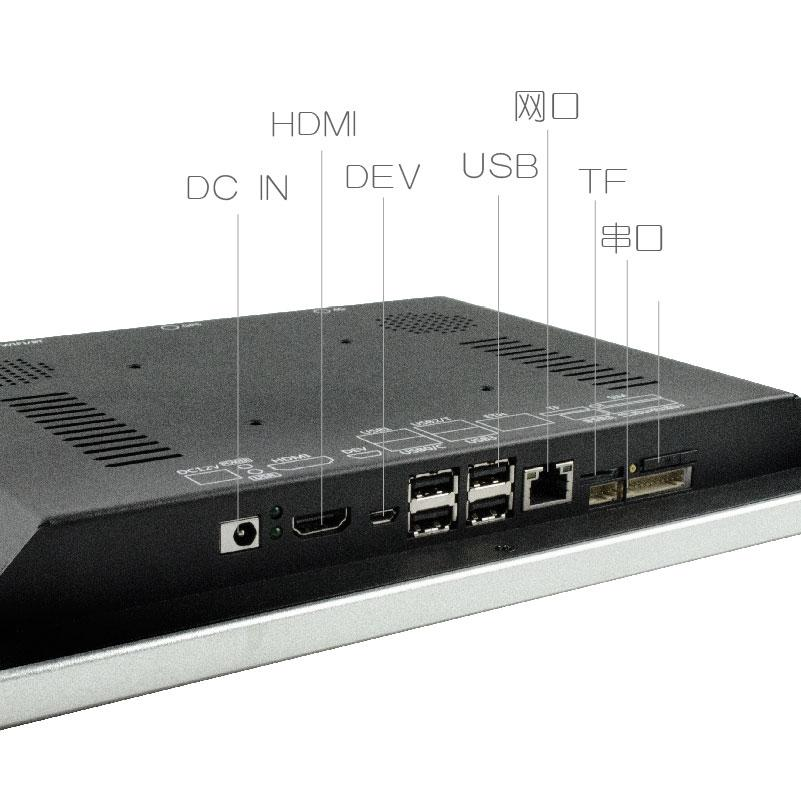

      Android 操作系统,主板基于 RK3288 高性能四核应用处理器平台, RK3288 主芯片集成四核 Cortex-A17 高性能四核 GPU,主频最高可达1.8GHz,具备超强的计算性能、2D/3D 图形处理能力和全高清视频编解码能力。支持以太网,WIFI 网络,4G 网络,USB ,串口等接口。

      RFID布草分拣台安卓触控一体机

      RFID布草分拣台安卓触摸一体机
