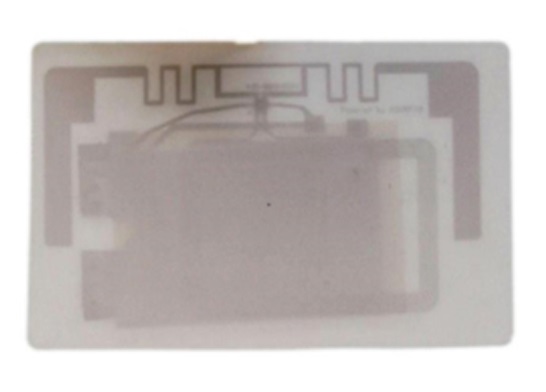

RFID双频温度传感器标签TAG-915-TEMP- XCC 03 DT

1.产品详情 product details

TAG-915-TEMP-XCC03DT RFID 双频温度传感器标签所使用的具有测温功能的 RFID 芯片，非接触界面支持高频 NFC和超高频两个射频接口，高频 NFC 接口通信协议可选择 ISO14443 或 ISO15693，超高频接口支持ISO18000-6C（EPC C1G2）协议，且为支持定时测温数据存储等功能内置了大容量EEPROM，提供纸电池有源工作模式可支持自唤醒连续测温数据储存，在0~10℃区间，以5分钟/次自动测温，电池使用寿命高达1年。可广泛应用于RFID冷链物流管理或者对温度敏感的RFID高值物资管理、RFID危险品管理、RFID防伪溯源等领域。

Tag-915-temp-xcc03dt RFID dual frequency temperature sensor tag uses the RFID chip with temperature measurement function. The non-contact interface supports two RF interfaces, namely high-frequency NFC and ultra-high frequency. The high-frequency NFC interface communication protocol can choose iso14443 or iso15693, and the UHF interface supports iso18000-6c (EPC) In order to support timing temperature measurement data storage and other functions, a large capacity EEPROM is built-in, providing paper battery active working mode, supporting self wake-up continuous temperature measurement data storage, automatic temperature measurement at 5 minutes / time in the range of 0 ~ 10 ℃, the battery service life is up to 1 year. It can be widely used in RFID cold chain logistics management or temperature sensitive RFID high-value material management, RFID dangerous goods management, RFID anti-counterfeiting traceability and other fields.

2.产品特点Product features

 2.1标签芯片内置高精度温度传感器，可完成实时或定时的环境温度测量。

The tag chip has built-in high-precision temperature sensor, which can complete real-time or timing environmental temperature measurement.

2.2标签芯片内置较高精度 RTC，可进行较为准确的定时唤醒操作。

The tag chip has built-in high-precision RTC, which can perform more accurate timing wake-up operation.

2.3标签芯片具有光检测功能，可检测强可见光，发出并记录报警信号。

 The tag chip has light detection function, which can detect strong visible light, send out and record alarm signals.

 2.4标签芯片内置大容量 EEPROM，可用于存储长时间的温度数据，并记录光报警信息。存储的数据

 可通过高频、超高频接口读出，高频接口支持安卓手机和苹果手机读取数据。

The tag chip has built-in large capacity EEPROM, which can be used to store long time temperature data and record light alarm information. The stored data can be read out through high-frequency and ultra-high-frequency interfaces, which support Android phones and apple phones to read data.

2.6标签芯片支持有源和无源两种测温模式：

The tag chip supports active and passive temperature measurement modes

2.7有源模式下，芯片可利用内置的 RTC，进行定时唤醒，启动测温并记录温度数据，也可接收三个接口发来的单次测温指令，完成单次测温操作。

  In the active mode, the chip can use the built-in RTC to wake up regularly, start the temperature measurement and record the temperature data, and also receive the single temperature measurement instruction from three interfaces to complete the single temperature measurement operation.

 2.8无源模式下，芯片可利用射频场能量，接收三个接口发来的单次测温指令完成测温操作，并回发测温结果给相应的接口。

 In passive mode, the chip can use the energy of RF field to receive the single temperature measurement instruction from three interfaces to complete the temperature measurement operation, and send the temperature measurement results back to the corresponding interface.

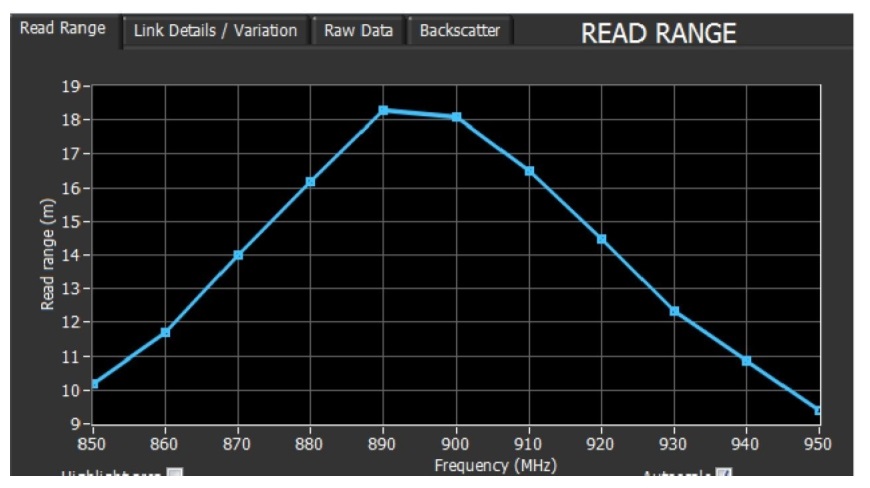

XCC03DT 有源测温标签（UHF ）识别距离曲线（30dBm ，6dBi ，-70dBm 测试条件）

产品参数

PRODUCT PARAMETERS
