一、蓝牙AOA高精度定位基站产品介绍

    蓝牙AOA高精度定位基站FU-GA25-P2是一款壳体防护等级达到IP66的高精度定位基站，采用最新的AOA到达角定位技术，与定位引擎和多种蓝牙终端一起组成亚米级高精度实时定位系统，单台基站即可独立进行高精度定位。

    蓝牙AOA高精度定位基站FU-GA25-P2定位引擎高性能，具备多架构支持、跨平台设计、云边融合设计的特点，软件配置高效快速，具备覆盖效果仿真、图纸输出、性能评估等技术支持优势；

    Bluetooth AOA high-precision positioning base station FU-GA25-P2 is a high-precision positioning base station with the protection level of IP66. It adopts the latest AOA angle-of-arrival positioning technology, and forms a sub-meter high-precision real-time positioning system together with positioning engines and various Bluetooth terminals, so that a single base station can independently perform high-precision positioning.

    The positioning engine of FU-GA25-P2, a Bluetooth AOA high-precision positioning base station, has the characteristics of high performance, multi-architecture support, cross-platform design and cloud edge fusion design. The software configuration is efficient and fast, and it has the advantages of technical support such as coverage effect simulation, drawing output and performance evaluation.

二、蓝牙AOA高精度定位基站型号名称

    产品名称：蓝牙AOA高精度定位基站

    产品型号：FU-GA25-P2

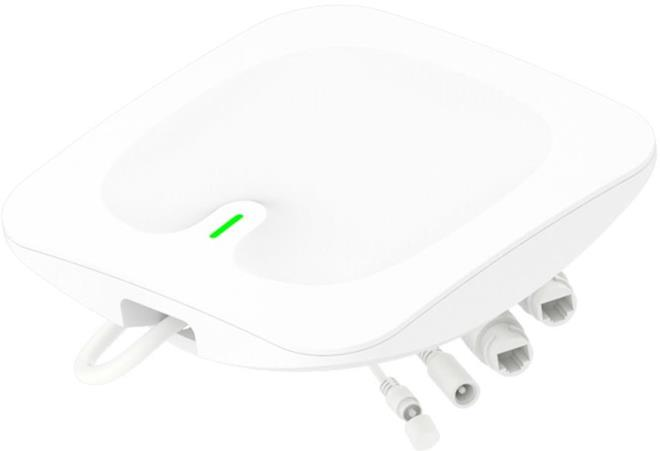

    产品外观：

三、蓝牙AOA高精度定位基站包装清单

四 、蓝牙AOA高精度定位基站产品参数

4.1、蓝牙AOA定位基站产品关键特性：

a、尺寸：180.7mm x 180.7mm x39.36mm

b、工作频段：2.401GHz – 2.481GHz

c、工作温度：-20℃ - 60℃

d、功耗：＜2W

e、安装高度：≤10m

f、供电方式：标准 PoE  (IEEE 802.3af/at)  /DC 供电 12-30V 1A

4.2、蓝牙AOA定位基站接口说明

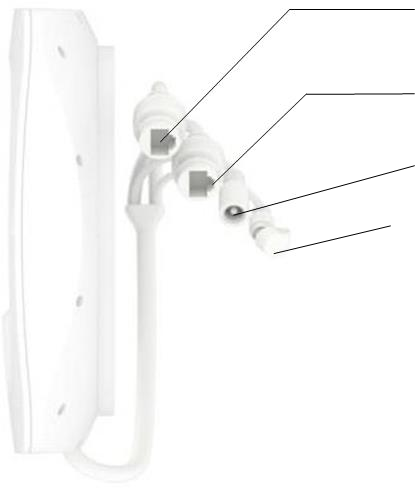

a、RJ45 * 2：分为 PoE IN 和 PoE OUT，供电与数据传输接口，可通过网线与标准 PoE 交换机连接或与其他双网口基站级联

b、DC 接口：供电电压与 PSE 供电的适配

c、复位孔：恢复默认设置按键，长按3S，基站绿灯快闪持续5S，表示基站恢复初始设置并重启成功

A、size: 180.7mm x 180.7mm x39.36mm

B、Operating frequency band: 2.401 GHz–2.481 GHz.

C、Working temperature: -20℃-60℃

D、power consumption: < 2w

E.、Installation height: ≤10m

F、power supply mode: standard PoE (IEEE 802.3af/at) /DC power supply 12-30V1.

4.2. Description of Bluetooth AOA Positioning Base Station Interface

A, RJ45 * 2: It is divided into PoE IN and PoE OUT, which are power supply and data transmission interfaces, and can be connected with standard PoE switches through network cables or cascaded with other dual-port base stations.

B, DC interface: adaptation of power supply voltage and PSE power supply.

C. Reset hole: press and hold the button to restore the default settings for 3S, and the base station will flash green for 5S, indicating that the base station has restored its initial settings and restarted successfully.

4.3、蓝牙AOA定位基站安装说明（*安装前请确认固定位置可承受 2kg 及以上的重量）

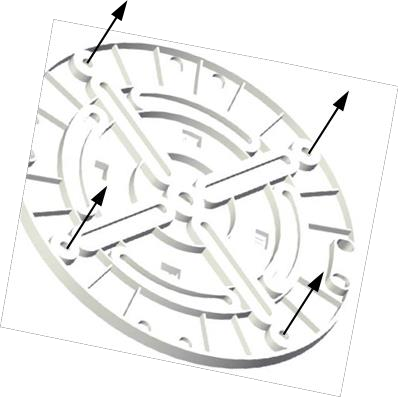

a、如右图所示，利用 KA4 螺钉将盘架紧固安装在平顶（箭头所示方向）；

b、对准安装盘架扣位，将基站推入安装盘架卡口，盘架卡扣面标示的网口方向应与基站背面标示的网口方向一致；

c、将上级网线连接至基站 RJ45 接口（PoE IN）；

d、如果有下级级联基站，通过网线连接该基站的RJ45接口（PoE OUT)与下级基站的RJ45接口（PoE IN），建议基站级联不超过8级；

A, as shown in the figure on the right, use KA4 screws to firmly install the tray rack on the flat top (in the direction indicated by the arrow);

B, aiming at the mounting rack buckle position, pushing the base station into the mounting rack bayonet, and the direction of the network port marked on the rack buckle surface should be the same as that marked on the back of the base station;

C, connecting the superior network cable to the RJ45 interface (POEIN) of the base station;

D, if there is a lower cascade base station, connect the RJ45 interface (PoE OUT) of the base station with the RJ45 interface (PoEoin) of the lower base station through a network cable, and it is suggested that the cascade of the base stations should not exceed 8 levels;

4.4、蓝牙AOA定位基站指示灯信号规则

a、正确安装基站并与 PoE 交换机级联后，基站自动启动，启动后可通过指示灯判定基站的运行状况；

b、LED 指示灯的信号规则如下表所示：

A, after the base station is installed correctly and cascaded with the PoE switch, the base station automatically starts, and the operation status of the base station can be judged by the indicator light after starting;

B, the signal rules of LED indicators are shown in the following table:

c、RJ45 接口指示灯的信号规则如下表所示：

4.5、蓝牙AOA定位基站指示灯信号规则

a、蓝牙AOA定位基站选择 PoE 供电方式时，  必须使用指定的标准 PoE 供电设备进行 供电(符合 IEEE802.3af/802.3at 协议的 PSE 设备)；

b、蓝牙AOA定位基站工作环境条件为 -20℃  -  60℃，湿度 0-95%，可室外安装，壳体防 护等级 IP66，远离火源及强电磁干扰源；

c、支持Web端， IOS和Android 平台的上层应用开发；

d、安装仰角理论极限 66°，强烈建议不超过 45°；

A、When the Bluetooth AOA positioning base station selects the PoE power supply mode, it must use the specified standard PoE power supply equipment (PSE equipment conforming to the IEEE802.3af/802.3at protocol) for power supply;

B、The working environment of Bluetooth AOA positioning base station is -20℃-60℃ and the humidity is 0-95%, and it can be installed outdoors. The protection level of the shell is IP66, away from fire sources and strong electromagnetic interference sources;

C、Support the upper application development of Web, IOS and Android platforms;

D、the theoretical limit of installation elevation angle is 66, and it is strongly recommended not to exceed 45;

FU-GA25-P2蓝牙AOA定位基站产品参数：
