一、产品介绍：

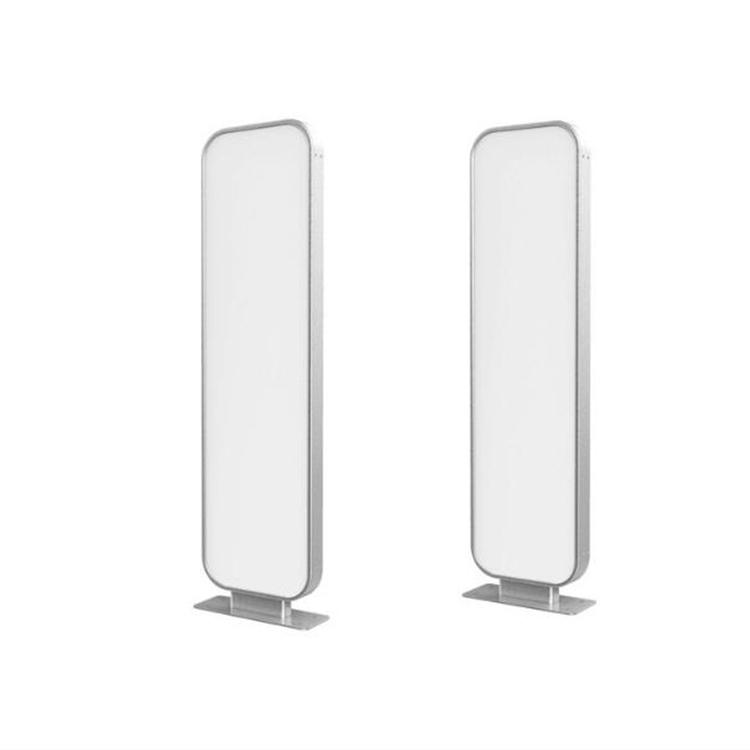

    FU-TD04 超高频(UHF)RFID门禁系统支持EPC C1 G2（ISO18000-6C）协议，支持服务器模式实现多通道控制功能，超高频RFID通道门禁内部集成高增益天线组、基于ThingMagic的高速读写器及控制模组，拥有高速读取标签性能和良好的读写区域控制能力，提供标准RS232或RJ45接口，方便连接软件平台。超高频(UHF)RFID门禁系统特别适用于各类物流仓储、图书档案、人员考勤管理等细分领域的应用。

    FU-TD04 UHF RFID access control system supports EPC C1 G2(ISO18000-6C) protocol and server mode to realize multi-channel control function. The UHF RFID access control system integrates high-gain antenna group, high-speed reader and control module based on ThingMagic, which has high-speed tag reading performance and good read-write area control ability, and provides standard RS232 or RJ45 interface for easy connection to software platforms. Ultra-high frequency (UHF)RFID access control system is especially suitable for all kinds of logistics warehousing, books and archives, personnel attendance management and other sub-fields.

二、产品功能：

• 自主知识产权设计；
  Independent intellectual property design;


• 支持服务器模式实现多通道控制功能；
  Support server mode to realize multi-channel control function;


• 支持EPC C1 G2（ISO18000-6C）协议；
  Support EPC C1 G2(ISO18000-6C) protocol;


• 工作频率902～928MHz（可定制865～868MHz）；
  Working frequency is 902 ~ 928 MHz (865 ~ 868 MHz can be customized);


• 输出功率5～31.5dbm（可调）；
  Output power 5 ~ 31.5 DBM (adjustable);


• 多标签读取能力强，红外触发模式下漏读率低于1%；
  Multi-tag reading ability is strong, and the missing reading rate is less than 1% in infrared trigger mode;


• 天线特别设计，实现水平面窄波束设计，门禁覆盖区域准确，无盲点；
  The antenna is specially designed to realize the narrow beam design in the horizontal plane, and the access control coverage area is accurate without blind spots;


• 内置报警灯和蜂鸣器，报警灵敏，安全可靠；
  Built-in alarm lamp and buzzer, sensitive alarm, safe and reliable;


• RFID门禁摆放距离更加宽阔，最远可达2.2m
  The distance of RFID access control is wider, up to 2.2m


• 可选内置3路红外运动传感器，用户可以用来识别进出方向；
  Optional built-in 3-way infrared motion sensor, which users can use to identify the direction of entry and exit;


• 可选LED显示器，显示标签数量；
  Optional LED display, showing the number of labels;


• 可选新标签读取提示功能；
  Optional new label reading prompt function;


• 外观时尚，组装简便

        Fashionable appearance and simple assembly.

三、产品规格：

• 尺寸：1371×370×69mm（每片）
  Size: 1371×370×69mm (each piece)


• 重量：22KG（每片）
  Weight: 22KG (per tablet)


• 工作频段：902MHz～928MHz
  Working frequency band: 902 MHz ~ 928 MHz


• 符合标准：ISO18000-6C
  Compliance with standards: ISO18000-6C


• 工作温度：-20℃～60℃
  Working temperature:-20℃ ~ 60℃


• 存储温度：-30℃～70℃
  Storage temperature:-30℃ ~ 70℃


• 环境湿度：5%～95%RH，无凝露
  Environmental humidity: 5% ~ 95% RH, without condensation.


• 供电电源：AC220V±10%47～63Hz
  Power supply: AC 220 V 10% 47 ~ 63 Hz


• 整机功耗：约45W
  Power consumption of the whole machine: about 45W


• 通讯接口：RJ45、RS232
  Communication interface: RJ45, RS232


• 每个通道门禁推荐宽度：0.8～1.5m（最大可达2.2m）
  Recommended width of access control for each channel: 0.8～1.5m (up to 2.2m).

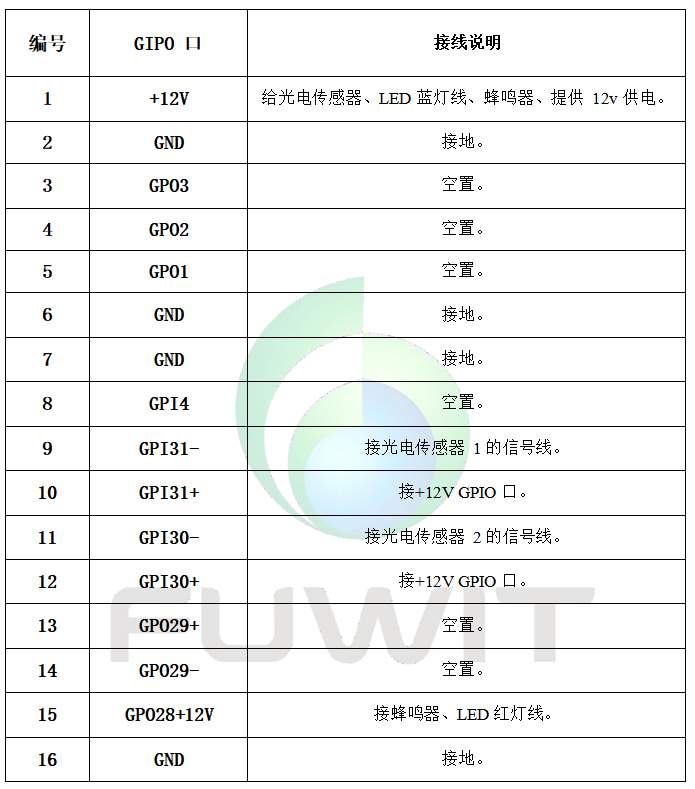

四、RFID门禁系统GPIO 控制接线说明

五、RFID通道门主副门禁组成部分：

    1）主门禁包括：门禁架1套；9dbi窄波束天线2根；Thingmagic四通道读写器1Pcs；电源模块1套；以太网口1个；馈线2根；
          The main entrance guard includes: 1 set of entrance guard frame; 2 9dbi narrow beam antennas; Thingmagic four-channel reader 1Pcs；;1 set of power module; 1 Ethernet port; 2 feeders;

    2）副门禁包括：门禁架1套；9dbi窄波束天线2根；红外对射1组；馈线2根；红外连接线1组；

超高频RFID门禁系统FU-TD04产品参数：
