迪士尼癌症中心RFID解决方案

文章出处:JADAK网责任编辑:作者:铨顺宏人气:-发表时间:2019-05-17 15:48:00【

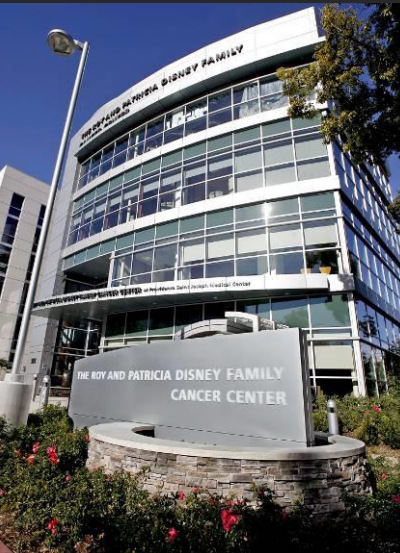

 罗伊和帕特里夏·迪斯尼家庭癌症中心

实施创新的RFID解决方案来增强

患者体验,提高效率



2010年2月,位于加州伯班克的普罗维登斯圣约瑟夫医疗中心(Providence Saint Joseph Medical Center)将其设施扩大到包括艾布兰德癌症门诊治疗中心(abrand new cancer treatment Center)。圣费尔南多谷(San Fernando Valley)已经是最大的医院,是医疗中心新增的四层楼,5.5万平方英尺大楼进一步扩大了现场服务。癌症中心现在拥有迄今为止最先进的癌症治疗设备,并在一个地点提供一系列癌症治疗。这座最先进的建筑被命名为罗伊和帕特丽夏迪斯尼家庭癌症中心,以其主要的资金来源。

RFID解决方案



沃尔特·迪斯尼的侄子罗伊·e·迪斯尼因胃癌去世,享年79岁。几年前,他和家人向普罗维登斯医疗中心慷慨捐赠了1000万美元加上来自周边企业和组织的捐款,筹集了3600万美元,这是癌症中心建成的必要条件。新中心的主要目标是治愈心灵、身体和精神同时融合了大自然的治愈力量和罗伊对海洋的热爱。该中心还希望在整个设施中保持个人的感觉,这样病人会感到轻松自在。为了实现这一点,一个全面的RFID系统应运而生安装的想法是,只要进入一个房间,病人的音乐,灯光和温度可以立即自动调整首选项。



解决方案



为了成功,RFID系统需要支持多个供应商产品的集成,并获得多个项目涉众的批准。供应商在8个月的时间里接受了审查,范围缩小了。来自该中心所有部门的主管部门,如管理人员、生物工程技术人员和临床医生,随后与现场专家合作,确保该系统满足该设施的所有需求。由此产生的独一无二的RFID启用系统集成了许多领先组织的产品和解决方案,满足了项目最初的目标,即创建一种环境体验,让患者重新获得控制权允许中心提供各种综合医学治疗。

ThingMagic,JADAK



到达治疗中心后,位于入口上方的两个ThingMagic Astra®RFID阅读器将读取启用RFID的患者识别徽章。除了身份证号码,这些没有任何标记的标签都挂在每个病人脖子上的吊牌上,作为他或她的账单、药物、日程安排和医生信息的链接。此外,标签还保留了患者的氛围偏好。这些偏好包括六种音乐选择,三种颜色选择,各种自然场景和特定的温度。一旦被RFID阅读器识别,礼宾员就可以立即向病人打招呼,并指引他们前往下一次预约。



另外32个Astra RFID阅读器安装在整个设施的天花板上最大面积的覆盖,并准备立即发现病人时,他或她已进入治疗室。RFID阅读器捕获的患者身份识别数据被发送到一种Reva系统标签采集处理器(TAP),它汇集RFID标签ID和位置信息,并将其发送到AeroScout MobileView可视性平台,医院工作人员可以实时跟踪患者的位置。从这里数据分发给Connexall SOA网关和起复杂的安全性和房间控制系统,病人运动和预先确定的房间配置处理立即改变照明,音乐、温度、视频显示器和其他环境条件,以满足病人的个人品味。患者位置数据也通过Connexall平台从MobileView分发到Avaya VOIP服务器、电话和IP浏览器显示,以便进行患者联系。



结果



罗伊和帕特里夏·迪斯尼家庭癌症中心的评估和发展花了大约两年的时间才能完成。从那里,四个月的技术测试开始,直到工厂建成于2010年2月开业。从那时起,该中心一直在治疗来自各方的患者在世界范围内,让癌症治疗变得更容易忍受。“我走过这些门,我发誓就像天使在唱歌。我并不是一个真正有灵性的人,但这是一种如此美妙的方式,它让你从治疗中转移注意力,利用大自然帮助你放松,让你感到轻松,”迪士尼家庭癌症中心(Disney Family Cancer Center)的第一位病人朱莉史蒂文斯(Julie Stevens)说。“当我在医院接受治疗时,我会忽略那个可怕的房间。我会闭上眼睛,把我的思想放在另一个地方,”她说。“我不需要在这里这么做。他们带我去那个地方。“一旦设备完全投入使用,该中心每年将帮助2500到3000名患者感受到这种感觉。



除了创造独一无二的个性化患者体验,该中心还从中受益改善了临床医生、患者和管理人员之间的工作流程。有了这个系统,病人比在其他地方有更多的自由在迪斯尼家庭癌症中心闲逛。当需要预约时,患者可以通过AeroScout MobileView平台轻松定位。由于病人的姓名被发送到他们的VOIP电话上,该中心的医生也有机会在病人到达治疗时立即问候他们。此外,该中心通过规划未来的升级,在新技术可用时纳入新技术,实现了投资回报的最大化。



在第8届年度RFID杂志现场会议上,RFID杂志提名迪斯尼家庭癌症中心为RFID最具创新性使用奖的得主。这个奖项是为了表彰迪斯尼家庭癌症中心:

一个开创性的RFID系统,旨在减少病人的焦虑

来自领先技术供应商的集成解决方案,改善了临床医生、患者和医院管理人员之间的工作流程

一个解决方案架构,解决医院运营的关键领域,并为未来的发展提供平台



RFID期刊奖每年颁发给那些与众不同的终端用户公司通过RFID技术的应用。该奖项的目的是表彰领导者在创建和部署RFID解决方案,并通过突出创新部署促进RFID技术的采用。罗伊和迪斯尼家庭癌症中心获得了该奖项为范畴最创新的RFID使用。



The Roy and Patricia Disney Family Cancer Center

Implements Innovative RFID Solution to Enhance



Patient Experience and Increase EfficiencyIn February 2010, Providence Saint Joseph Medical Center in Burbank, California expanded its facilities to include abrand new outpatient cancer treatment center. Already the largest hospital in the San Fernando Valley, the MedicalCenters addition of the four -floor, 55,000-square-foot building broadened its on-site services even further. The Cancer Center now houses the most advanced cancer treatment equipment to date and offers an entire range of cancer therapies in a single location. This state-of-the-art building is named The Roy and Patricia Disney Family Cancer Center after the main source of its funding.

 ThingMagic,JADAK

Roy E. Disney, the nephew of Walt Disney, passed away from stomach cancer at the age of 79.Years earlier, he and his family donated a generous $10 million to Providence Medical Center and, along with donations from surrounding businesses and organizations, raised the $36 million necessary for completion of the cancer center. The major goal of the new center was to heal mind, body and spirit simultaneously, incorporating the healing power of nature and Roy’s love for the ocean. The center also wanted to keep a personal feel throughout the facility so patients would feel relaxed and at home. In order to accomplish this, a comprehensive RFID system was installed with the idea that just by entering a room, a patient’s music, lighting and temperature preferences could be adjusted immediately and automatically.



The Solution

To be successful, the RFID system needed to support the integration of multiple vendors’ products as well as gain approval from several project stakeholders. Vendors were reviewed over an eight-month period and the field was narrowed down. Authorities from all sectors of the center such as managers, biomed engineers and clinicians then collaborated with field experts to ensure the system met all the needs of the facility. The resulting one-of-a-kind RFID enabled system integrates products and solutions from many leading organizations, meeting the project’s original goals of creating an ambient experience that lets the patient take back control and allowing the center to deliver various integrative medicine treatments.

 ThingMagic,JADAK

Upon arrival at the treatment center, RFID-enabled patient identification badges are read by two ThingMagic Astra® RFID Readers positioned above the entrance. Except for an ID number, these otherwise unmarked tags hang from lanyards around each patient’s neck, serving as a link to his or her billing, pharmaceutical, scheduling and doctor information. In addition, tags also hold patient atmosphere preferences. These preferences include a selection from six music choices, three color choices, various nature scenes and a specific desired temperature. Once identified by the RFID readers, a concierge is immediately able to greet the patient and direct them to their next appointment.



An additional 32 Astra RFID readers are installed throughout the facility, positioned on ceilings for maximum area coverage and prepared to immediately detect a patient when he or she has entered a treatment room. The patient identification data captured by the RFID readers is sent to a Reva Systems Tag Acquisition Processor (TAP) which aggregates the RFID Tag ID and location information and sends it to an AeroScout MobileView visibility platform where hospital staff can track patient location in real time. From here the data is distributed to a Connexall SOA Gateway and onwards to a sophisticated security and room control system where patient movement and pre-selected room configurations are processed to immediately change the lighting, music, temperature, video displays and other environmental conditions to cater to the patient’s individual tastes. Patient location data is also distributed from MobileView through the Connexall platform for message and alert distribution to Avaya VOIP servers, phones and IP browser display to facilitate ongoing patient contact.



The Results

The Roy and Patricia Disney Family Cancer Center assessment and development took about two years to complete. From there, four months of technology testing was launched until the facility was ready to open in February of 2010. Since then the center has been treating people from all over the world, making cancer treatment a little more tolerable. “I walked through these doors and I swear it was like angels singing. I’m not a really spiritual person, but this is so beautiful the way it puts you at ease by diverting your mind from your treatment and using nature to help you relax,” said Julie Stevens, Disney Family Cancer Center’s first patient. “When I was treated at the hospital, I would ignore the scary room. I would close my eyes and put my mind in another place,” she said. “I don’t have to do that here. They take me to that place.” The center will help between 2500 and 3000 patients annually to feel this way once the equipment is fully operational.



In addition to creating a one-of-a-kind personalized patient experience, the center benefits from the improved workflow between clinicians, patients and administration. With this system, patients are granted more freedom to wander throughout the Disney Family Cancer Center than in other places. When needed for appointments, patients can be easily located with the AeroScout MobileView platform. Doctors at the center also have the opportunity to greet their patientsimmediately upon arrival for treatment since patient names are sent to their VOIP phones. Further, the center has maximized its return on investment by planning for future upgrades, incorporating new technology as it becomes available.



At their 8th Annual RFID Journal LIVE conference, RFID Journal named the Disney Family Cancer Center the winner of The Most Innovative Use of RFID award. This award recognized Disney Family Cancer Center for:

A pioneering RFID system designed to reduce patient anxiety

An integrated solution from leading technology vendors that improves workflow between clinicians, patients and hospital administrators

A solution architecture that addresses key areas of hospital operation and provides a platffor future growth



The RFID Journal Awards are given annually to end-user companies that distinguish themselves through the application of RFID technologies. The goal of the awards is to recognize the leaders in creating and deploying RFID solutions and to foster adoption of RFID technologies by highlighting innovative deployments. The Roy and Disney Family Cancer Center won the award for the category of Most Innovative Use of RFID.
