T35404W / 1.5dBi 双馈点 RFID圆极化陶瓷天线

1.产品详情 Product details

超高频RFID圆极化陶瓷天线产品，其体积小、安装简单，外型美观实用。主要配合固定式超高频RFID读写器/UHF RFID模块使用。目前已经被众多项目采用，如：RFID仓库管理，RFID物流配送，RFID军用物资管理，RFUID车辆管理等。用途广泛，是众多超高频RFID方案的首 选天线.

RFID UHF circularly polarized antenna products have the advantages of small size, simple installation, beautiful and practical appearance. It is mainly used with fixed UHF RFID reader / UHF RFID module. At present, it has been adopted by many projects, such as RFID warehouse management, RFID logistics distribution, RFID military material management, rfuid vehicle management, etc. Widely used, it is the first choice of many UHF RFID schemes.

此类天线可以依照客户需求订制连接线长度，常规长为120mm,SMA或者MMCX接口可选。

It is mainly used with fixed UHF RFID reader / UHF RFID module. This kind of antenna can be customized according to the customer's requirements. The normal length is 120mm. SMA or MMCX interface is optional.

2.典型应用 Typical application

近距离一体机、发卡机、手持机等等RFID设备

RFID equipment such as close range all-in-one machine, card sending machine, hand-held machine, etc

3.产品参数

此类天线可以依照客户需求订制连接线长度，常规长为120mm,SMA或者MMCX接口可选。

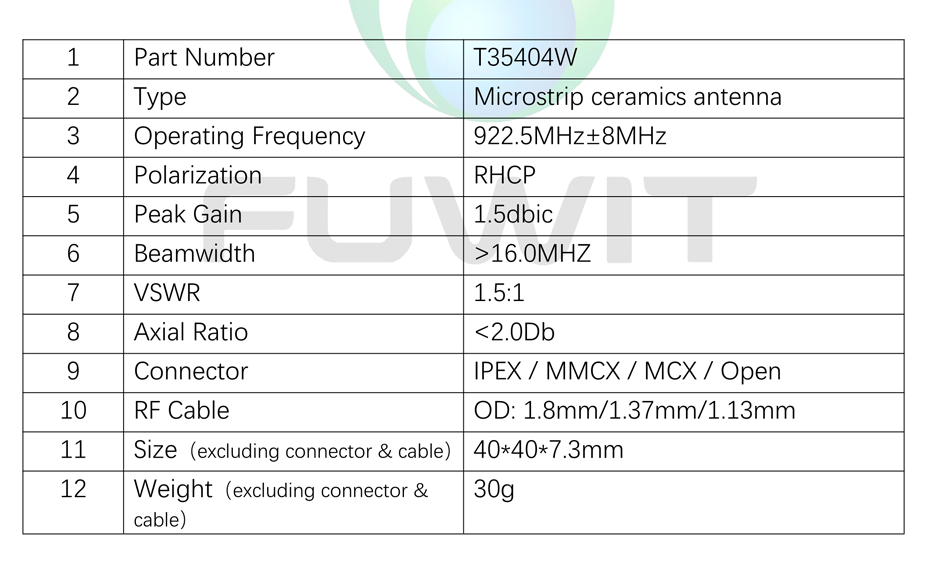

1.5dBi 双馈点 RFID圆极化陶瓷天线T35404W参数：
